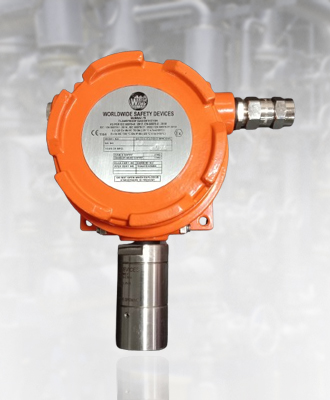

We are Model-GD-23C manufacturers and exporters in Mumbai,India, Fixed Combustible gas detector is one of hot sales product from Worldwide Safety Devices for LPG/PNG/CNG / H2 & HC Gas ,LED Digital display with explosion proof alarm &light, supports 4-20mA signal output,Better to use in LPG Bank, PNG/CNG Skid, , gas station,chemical industry, mines, tunnels and other places Flameproof Certified BY ATEX for GR.IIC
| Product name | Fixed combustible lelgas detector |
| Detection Gas | LPG/PNG/CNG/H2 & Hydro Carbon Gases in the Range of 0-100% LEL |
| Sensor types | CATLYTIC. PELLISTOR |
| Working pattem | contrsious work |
| Output signal | DC 24V |
| FLAMEPROOF CERT | IEC 60079-0:2017/EN-60079-0:2018 IEC/EN 60079-1:2014 & IBC 60079-31-2022/EN 60079-31:2014 12 GD Ex do IIC T6 Gb (-20°C=Ta=55°C) Ex to IIIC T85 °CDb IP66 (-20°C=Ta=55°C) |
| Temperature humidity | -20-50,15%~90% RH (No condensation) |
| Opsoral | Multigas alarm controler |
| Cable | 3 Core-1.5Sq.mm.Amored Cables |
| Cable Entry | Double Compression Cable Gland (ExProof) M20 X1.5 P |
| System Power | Maximum power TW |
