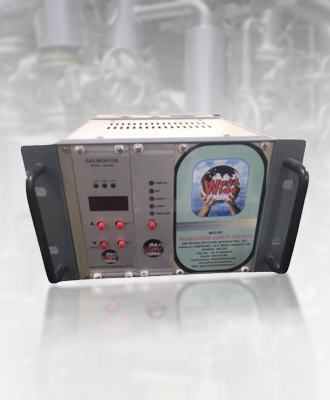

We are a leading Continous Gas Monitoring Systems Manufacturer in Mumbai, India. The Model MP-XX is a microprocessor based fixed gas detection systems is designed to accept the universal 4-20m analog input from the Flammable, Toxic and Oxygen Gas detector. The system is designed to provide continuous round the clock monitoring for a variety of common atmospheric hazards.
Gas Monitor Controller Unit Model MP-XX is our flexible microprocessor controlled System designed with a modular approach, so you get exactly what you want. Gas Monitor Controller Card is having the Four Programming Keys to do changes the Alarm Set points, Alarm Acknowledgment and Programming on the Controller Card
Gas Monitor Controller Card is having the Test Mode to check the Operating Function of the Gas monitor Controller Unit
Each Controller card is having the 4 Digit Digital Display, Alamr-1, Alarm-2, Fault, Inhibit , and Power ON indications, as also having the UNDER and OVER range indications on the Controller Card
Controller Card is having the Retransmission 4-20mA Analog Output and RS -485 communication Output
Gas monitor Controller Card is having the individual Alarm-1 & Alamr-2 Relay Output, Faulty Relay Output and Common Alarm-1 & Alarm-2 Relay. All the relay contacts is Potential Free relay output (C/NO/NC --2AMP @230VAc)
| Model: | MP-XX |
| Capacity | 2,5,8,& 16 channel |
| Display | 4 Digit 7 segments Digital Display |
| 3mm LED indications | Power ON, Alarm-1, Alarm-2,Fault and Inhibit |
| Audio Alarm | In Built Buzzer External Siren(Audio/visual)Operating on 24 VDC |
| Alarm Acknowlegement | Alarm Acknowlege by Controller Card Front key |
| Input | 4-20mA Analog Output from the Gas Detector |
| Output | Indivdial Card Alarm-1- Relay Output ( C/NO/NC) Indivdual Card Alarm-2 Relay Output ( C/NO/NC) Indivdual Card Fault Relay Output ( C/NO/NC) Common Alarm-1 Relay Ouput (C/NO/NC) Common Alarm-2 Relay Ouput (C/NO/NC) 4-20mA Analog Output Standrad 4-20mA Analog Output from Invdiual Controller Cardz Communication Output RS485 Modbus RTU Output |
| Password | Password Protection Programming |
| Power Supply | Stabilize Input 230VAC |
| Operating Temperature | 0 TO 55 d c |
| Humidity | 0 TO 95% RH non Condensing |
| Mounting | Wall Mounting Also Available with Standard Server Rack Enclosure |
