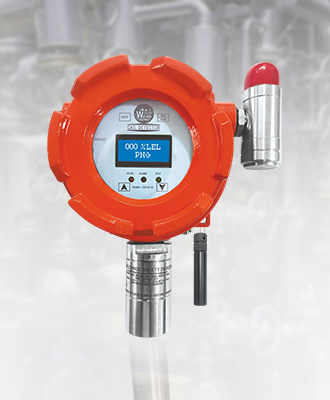

Fixed Combustible gas detector is one of hot sales products from Worldwide Safety Devices for LPG/PNG/CNG / H2 & HC Gas ,LED Digital display with explosion proof alarm & light, supports 4-20mA signal output, Better to use in LPG Bank, PNG/CNG Skid, , gas station, chemical industry, mines, tunnels and other places Flameproof Certified BY ATEX for GR.IIC
| Product name | Fixed combustible lal gas detector |
| Detection Gas | LPG/PNG/CNG/H2 & Hydro Carbon Gases in the Range of 0-100% LEL |
| Sensor types | Catalytic Sensors |
| Working pattern | continuous |
| Working vo lage | DC 24V |
| Display | LED digital display |
| Alarms(Optional | Flamepro of Sound and red light alarma |
| Output signal | 4-20m A or RS485 Modbus |
| Alams Indication | State. Alam-1 & Alarm-2 LED Inciations |
| Alarm Relay Output (OPTIONAL) | Alarm-1 (CNO) & Alarm-2 (C/NO) Potentioal Free Alarm Relay Output Max DAMP |
| Ca Horation | Using Magnetic Keys |
| FLAMEPROOF CERT | IEC 60079-0: 2017/EN-60079-0:2018 IEC/EN 60079-1:2014 & IEC 60079-312022/EN 60079-31:2014 II2 GD Ex db IIC T6 Gb (-20°C =Ta=55°C) Ex tb IIIC T85 °C Db IP66 (-20°C=Ta=55°C) |
| Temperature hun idity | -20-50 15%~90% RH (No condensation) |
| Optional | Multi gasalarm controller |
| Cable | 3 Core-1.5Sqmm Armored Cable |
| Cable Entry | Double Compression Cable Gland (Ex Proof) M20 X15 P |
| System Power | Masamum powerw |
