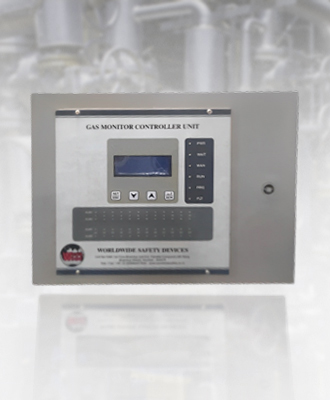

We are a leading Gas Monitor Controller Unit Manufacturer in Mumbai, India. This is a highly performing multipurpose micro controller based gas detector scanner with 8,16 and 24 channels. This product features out-perform those any of other gas monitoring device. The instruments front is constructed with flat, angled terminals and a sealed membrane type to a tolerate dusty enviroments.
The Programming, Calibration and Operation of the instrument is an Nine simple keys with two independent displays for channel and data for the channel displays of four digit each 0.56" displays status at Run/Program/Verify Mode and status of each channel for programmed set point type and limits are displayed by 3mm red LEDs. The operation of the instrument is menu driven with under stable user prompt for password is kept for unauthorized access.
The product is made to accept 4-20mA Input or mV from the gas detector. without trim pots is done for calibration of the unit. The calibrated of the unit can be in installed condition itself by front panel keys is at any given point. Two set point HIGH or VERY HIGH type for Alarm limit-1 and Alarm limit-2 as well as relay auction type for Alarm limit-1 and limit-2 (ON or OFF) are programmable For each High & Very High set poins two pole relay are given and one common relay for Alarm O/P with 24V DC for External Siren.
| Function | Digital Gas Monitor Controller Unit |
| Capacity | 2,5,8,& 16 channel |
| Display | 4 Digit 7 segments Digital Display |
| 3mm LED indications | Power ON, Alarm-1, Alarm-2,Fault and Inhibit |
| Audio Alarm | In Built Buzzer External Siren(Audio/visual)Operating on 24 VDC |
| Alarm Acknowlegement | Alarm Acknowlege by Controller Card Front key |
| Input | 4-20mA Analog Output from the Gas Detector |
| Output | Relay Output Indivdial Card Alarm-1- Relay Output ( C/NO/NC) Indivdual Card Alarm-2 Relay Output ( C/NO/NC) Indivdual Card Fault Relay Output ( C/NO/NC) Common Alarm-1 Relay Ouput (C/NO/NC) Common Alarm-2 Relay Ouput (C/NO/NC) 4-20mA Analog Output Standrad 4-20mA Analog Output from Invdiual Controller Card Communication Output RS485 Modbus RTU Output |
| Password | Password Protection Programming |
| Power Supply | Stabilize Input 230VAC |
| Operating Temperature | 0 TO 55 d c |
| Humidity | 0 TO 95% RH non Condensing |
| Mounting | Wall Mounting Also Available with Standard Server Rack Enclosure |
