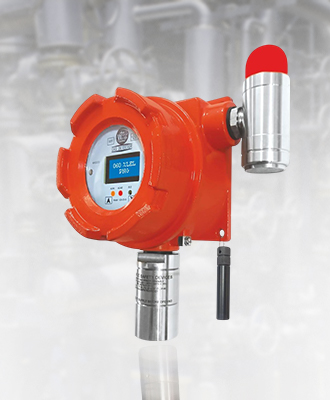

We are Gas Detector Manufacturer, Exporter & Wholesaler in Mumbai, India. Worldwide Safety Devices is introduced the New Gas Detector is called the GD+ for Continuous Fixed Gas Detection Systems for all HC (% LEL) & Toxic (PPM) Gases.
Having RS 485 output multiple GD+ gas detectors can be installed in One Single Loop Cable and will communicate with main Gas Monitor Panel, PLC or DCS, It will reduce the Cable and Cable Installation Cost of the Gas Detection Systems
GD+ Gas Detector Junction Box and Gas Sensor Housing is Flameproof certified as per the IS Standard by CIMFR, BIS & PESO.
GD+ Flameproof Gas Detector is supplied with all necessary accessories for easy installation,
The Gas Detector can be installed on Wall or Support mounting Stand, Electrical Installation can be made using either conduit or cable with Suitable mechanical protection ,A ¾" ET entry cable gland are include as standard.
A Weather proof canopy is also included for use in harshest outdoor conditions Worldwide Safety Devices Gas Detector GD+ can adopt Pellistor, Electrochemical and Semiconductor Sensor for measuring the respective HC and Toxic Gases.
| Detection Method | Using Catalytic, Electrochemical & Semicondutor Type Gas Sensor |
| Gas Detected | All HC - 0-100 % LEL and Toxic in PPM rang |
| Display | 4 Digit Bright Digital Display |
| LED Indication | ALARM-1, ALARM-2, FAULT, INHIBIT ,AND POWER ON Indications by 3 MM LED |
| Control Action | Two independent alarm Set points with Latch and Non Latch Facility |
| Output | 4-20mA Analog Output Alarm-1& Alamr-2 Relay Contact ( C/NO/NC- 1 POLE EACH) RATING 230vac@ 2 amp |
| Weight | Approx : weight 2 KG |
| Enclosure Material | Junction Box : Aluminium LMG alloy Sensor Housing : SS304 |
| Ingress Protection | IP 65 |
| Cable Entries | 2 no 3/4" ET Treabd for cable Entry |
| Power | 24VDC / 210mA |
| Operating Temperature | 0 DC To 50 DC |
| Humidity | 0-90% RH |
| Terminals | Suitable for 1.5 sq.mm Cable |
| Reptability | Plus / -2 % FSD Typically |
| Response Time | T 90 < 15 Seconds Typically |
| Hazardous Area | Zones 1 & 2, GR IIA/ IIB |
| Approvals | Flameproof Junction Box & Sensor Housing As Per IS 60079: 2007, for GR. lIA & lIB, Zone 1 & 2 certified by CIMFR, BIS and PESO |
| Certificate | As Per IS 60079: 2007, for GR. lIA & lIB, Zone 1 & 2 certified by CIMFR, BIS and PESO |
