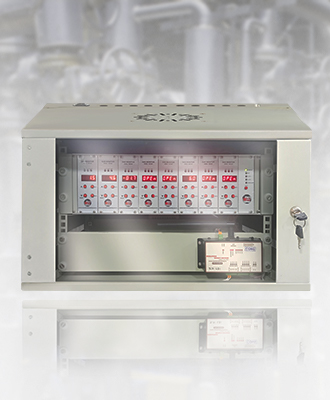

The continuous gas monitor controller coming from the house of Examination Technonlogy is built to ascertain and investigate gas concentrations in numerous environments in an effort to be sure all safety precautions are taken care, and all regulatory standards are met. The most common turnkey solutions include real-time data displays, alarms for dangerous gas levels and interoperability with a buildings ventilation system to activate when the alarm or monitor detects high CO2. They are widely employed by oil and gas, manufacturing and environmental monitoring industries to safeguard employees and equipment from dangerous gases.
| DESCRIPTION | CGMS CONNECT CONTROLLER UNIT |
| NO OF CHANNEL | 2.5,88 16 CHANNEL GAS MONITOR CONTROLLER UNIT |
| Detecting Gas | CO Gas |
| INDIVIDUAL CARD TYPE | 2.5,& B Channel |
| SCANNER TYPE | 8 & 16 Channel |
| DIGITAL DISPLAY | 4 Digit Digital Display |
| LED INDICATIONS | Individual Alarm−1 & Alarm−2 Indications Power “ON” and “WAIT” Indications Common Alarm−1 & Alarm−2 LED Indications |
| ALARM SETPOINT | Individual channel Alarm- 1 & Alarm- 2 setpoint will be adjusted using front panel keys |
| ALARM RELAY OUTPUT | Potential free common alarm relay output |
| FILTER | RFE/EMI FILTER |
| OPERATING VOLTAGE | 230VAC STABILIZED SUPPLY |
| SIREN | Two level audiablle and flashing alarm operating on 24VDC |
| ALARM RESET SWITCH | Alarm reset latch type |
| ALARM RESET SWITCH | Alarm reset latch type |
| RS 485 OUTPUT | RS-485 output for the scanner type 8 & 16 channel controller unit |
| TEMPERATURE RANGE | 0 D C TO 50 D C |
| HUMIDITY | 95% RH |
| Operating voltage | 24VDC |
| SIM Card | Any GSM Sim card |
| CGMS Alarm-1 - SMS- TEXT | “Attention Please: LPG Leakage noched at Alarm-1” with Time and Date |
| CGMS Alarm-2 - SMS- TEXT | “Attention Please: LPG Leakage noched at Alarm-2” with Time and Date |
| Alarm Recovery - SMS- TEXT | “LPG Leakage stopped at Gas Bank area” |
| Remote Support | Support remote setting via SMS Commands |
| Number of phone | Preset 10 Phone Number Remote add / Edit / Delete / Phone Numbers |
| Operating voltage | 24VDC |
| SIM Card | Any GSM Sim card |
| CGMS Alarm-1 - SMS- TEXT | “Attention Please: LPG Leakage noched at Alarm-1” with Time and Date |
| CGMS Alarm-2 - SMS- TEXT | “Attention Please: LPG Leakage noched at Alarm-2” with Time and Date |
| Alarm Recovery - SMS- TEXT | “LPG Leakage stopped at Gas Bank area” |
| Remote Support | Support remote setting via SMS Commands |
| Number of phone | Preset 10 Phone Number Remote add / Edit / Delete / Phone Numbers |
| Mounting | Wall Mounting Wall Mounting Panel with Support “L” angle Brackets |
| Lock | Glass door with lock & key |
| Cooling Fan | 1 No 90 CFM Cooling Fan on Top |
| Cable Entry | Cable Entry provision from top and bottom at rear section only |
| Colour | Siemens Gray |
